Event Trussing Hire & Rental
Strength & structure in design
Event Truss & Trussing Hire / Rental from Stage Men
Our trussing features TUV Certified aluminium welding and 3mm wall thickness for a superb load handling capacity. We stock a full range of lengths, baseplates, corners, connectors and couplers, making them ideal for fixed installation, shop fittings and event applications.
We have a full 3D CAD serivce for enquireies. We offer complete custom design and build service on all trussing hires. Our systems are perfect for exhibitions, shop displays, concerts, tours, lighting support, sporting events and much more.
Our trussing comes with installation or supply only. Speak to us about arranging a site visit at your event location.

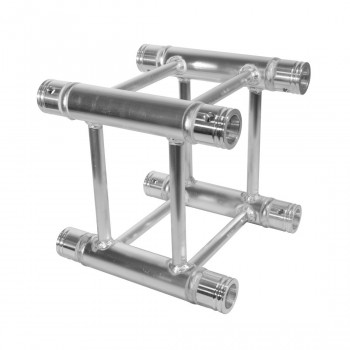

DuraTruss DT34/3-025 - 4-Point Truss 25cm
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
Dimension and weight:
• Length: 250 mm (without connector)
• Width: 290 mm
• Height: 290 mm
• Weight: 3.9 kg
DuraTruss DT34/3-050 - 4-Point Truss 50cm
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
Dimension and weight:
• Length: 500 mm (without connector)
• Width: 290 mm
• Height: 290 mm
• Weight: 4.4 kg

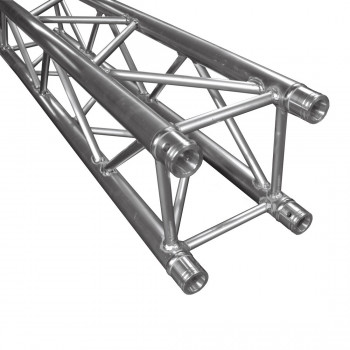

DuraTruss DT34/3-100 - 4-Point Truss 100cm
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
Dimension and weight:
• Length: 1000 mm (without connector)
• Width: 290 mm
• Height: 290 mm
• Weight: 7.4 kg
DuraTruss DT34/3-150 - 4-Point Truss 150cm
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
Dimension and weight:
• Length: 1500 mm (without connector)
• Width: 290 mm
• Height: 290 mm
• Weight: 10.5 kg
DuraTruss DT34/3-200 - 4-Point Truss 200cm
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
Dimension and weight:
• Length: 2000 mm (without connector)
• Width: 290 mm
• Height: 290 mm
• Weight: 13.7 kg
DuraTruss DT34/3-250 - 4-Point Truss 250cm
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
Dimension and weight:
• Length: 2500 mm (without connector)
• Width: 290 mm
• Height: 290 mm
• Weight: 16.8 kg
DuraTruss DT34/3-300 - 4-Point Truss 300cm
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
Dimension and weight:
• Length 3000 mm (without connector)
• Width: 290 mm
• Height: 290 mm
• Weight: 19.9 kg

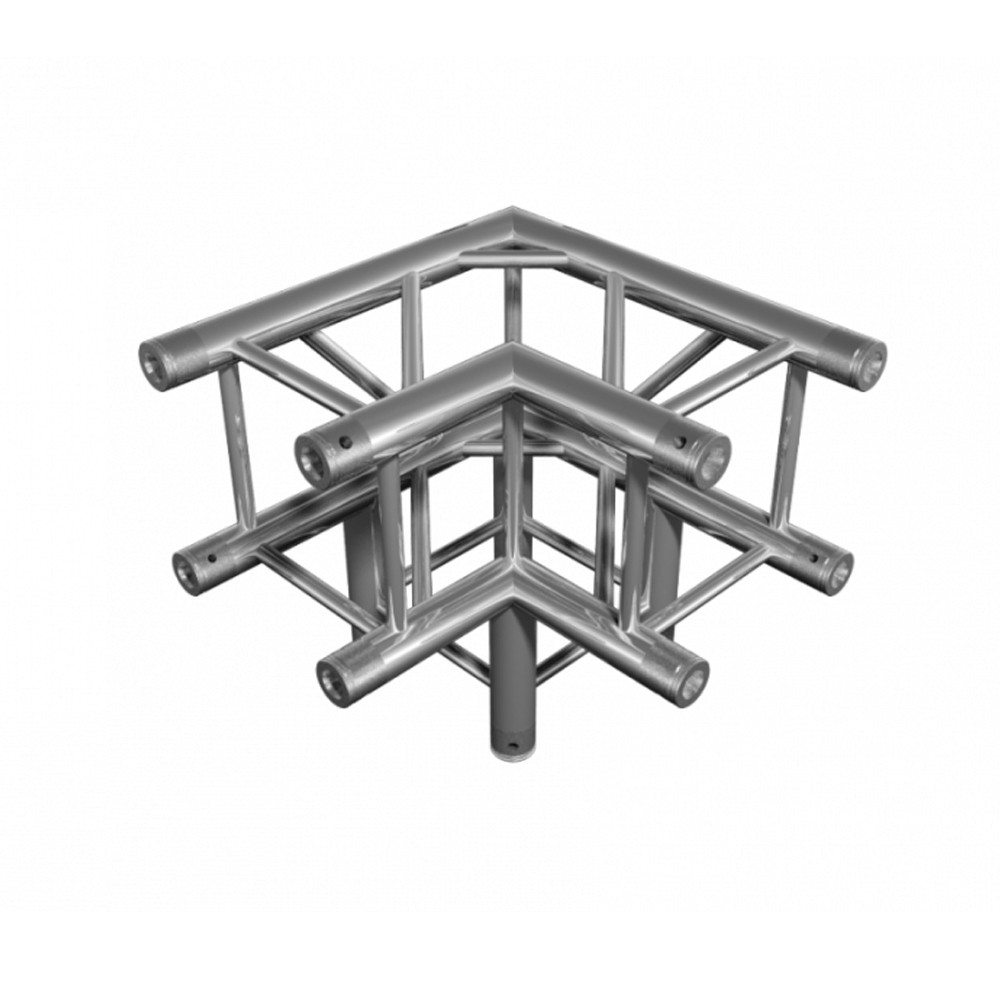

DuraTruss DT 34/3-C30-LD90 - 3 way corner 90°
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
Dimension and weight:
• Length 500 mm (without connector)
• Width: 500 mm
• Height: 500 mm
• Weight: 7.6 kg

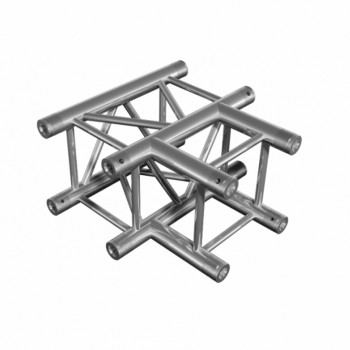

DuraTruss DT 34/3-T35T - 3 way T-joint
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
Dimension and weight:
• Length 500 mm (without connector)
• Width: 500 mm
• Height: 290 mm
• Weight: 6.1 kg

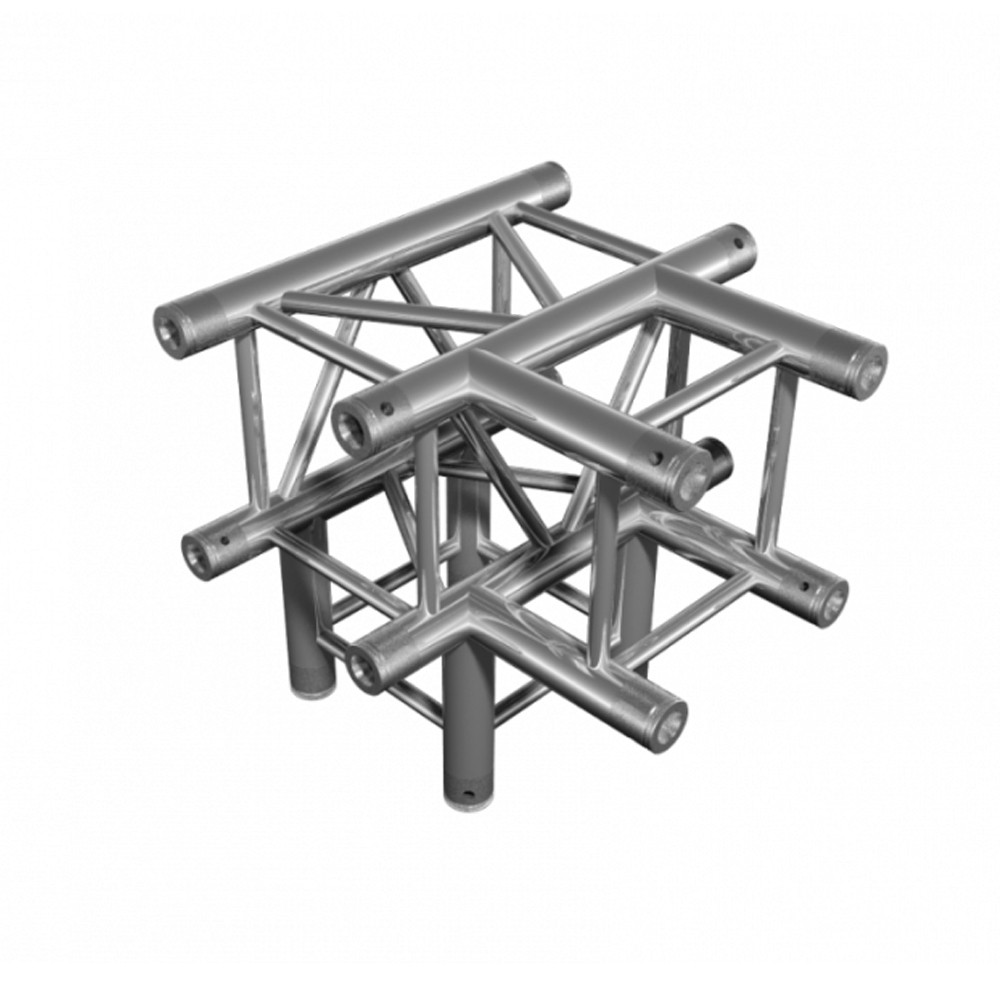

DuraTruss DT 34/3-T40-TD - 4 way t-joint + down
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
Dimension and weight:
• Length 500 mm (without connector)
• Width: 500 mm
• Height: 500 mm
• Weight: 12.4 kg

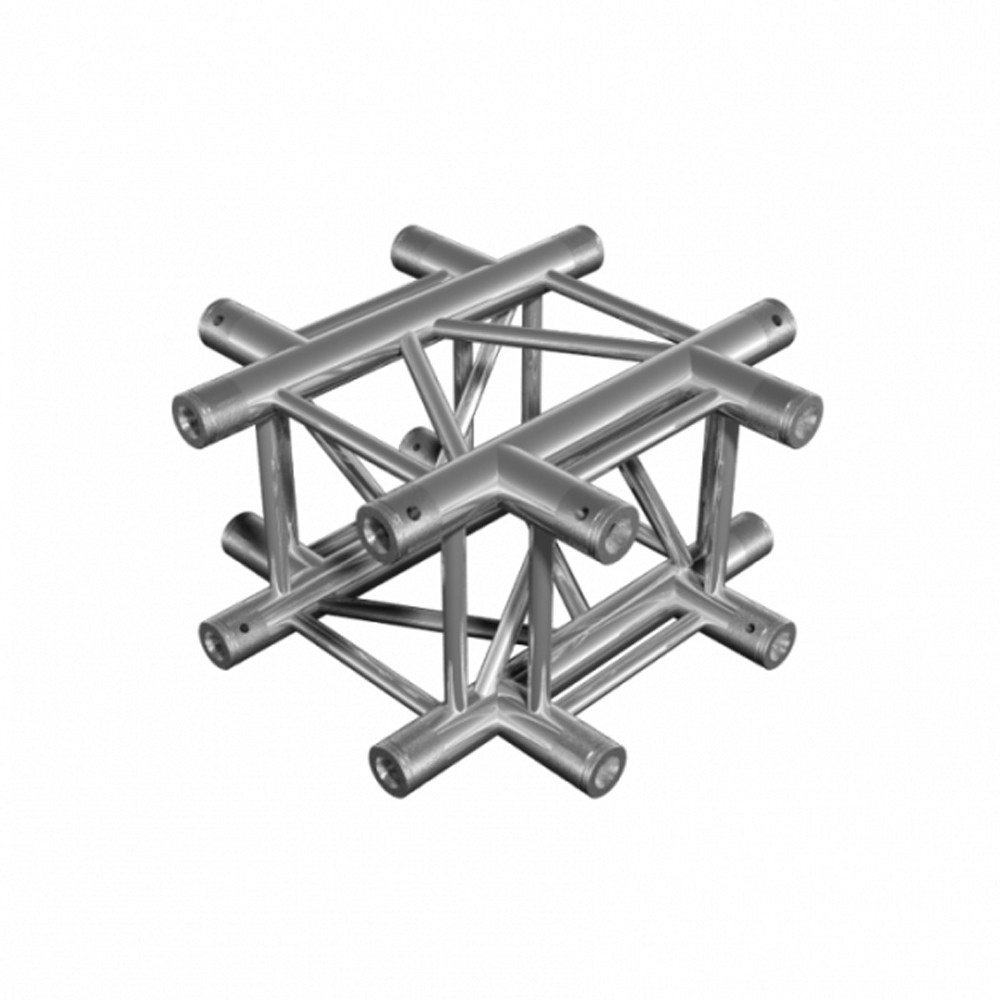

DuraTruss DT 34/3-C41-X - 4 way X-joint
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
Dimension and weight:
• Length 500 mm (without connector)
• Width: 500 mm
• Height: 290 mm
• Weight: 6.9 kg

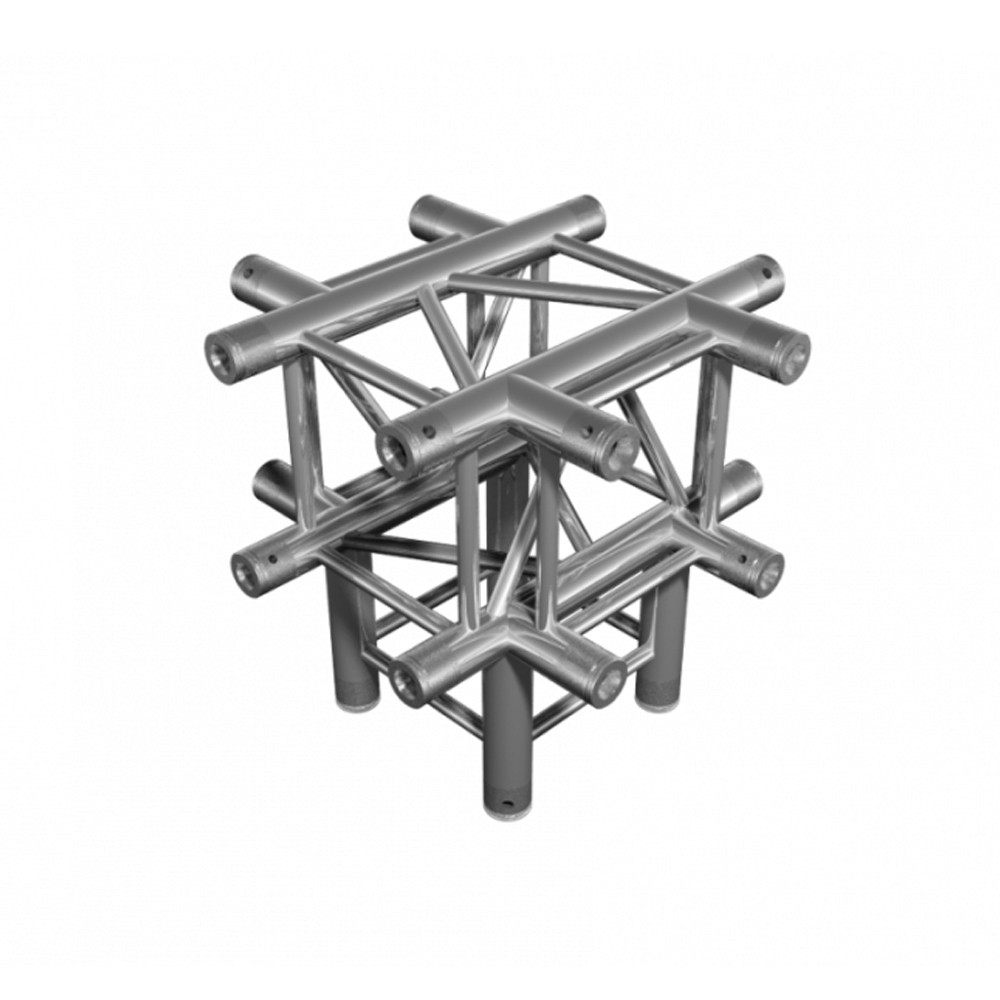

DuraTruss DT 34/3-C51-XD - 5 way X-joint + down
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
Dimension and weight:
• Length 500 mm (without connector)
• Width: 500 mm
• Height: 500 mm
• Weight: 12.4 kg

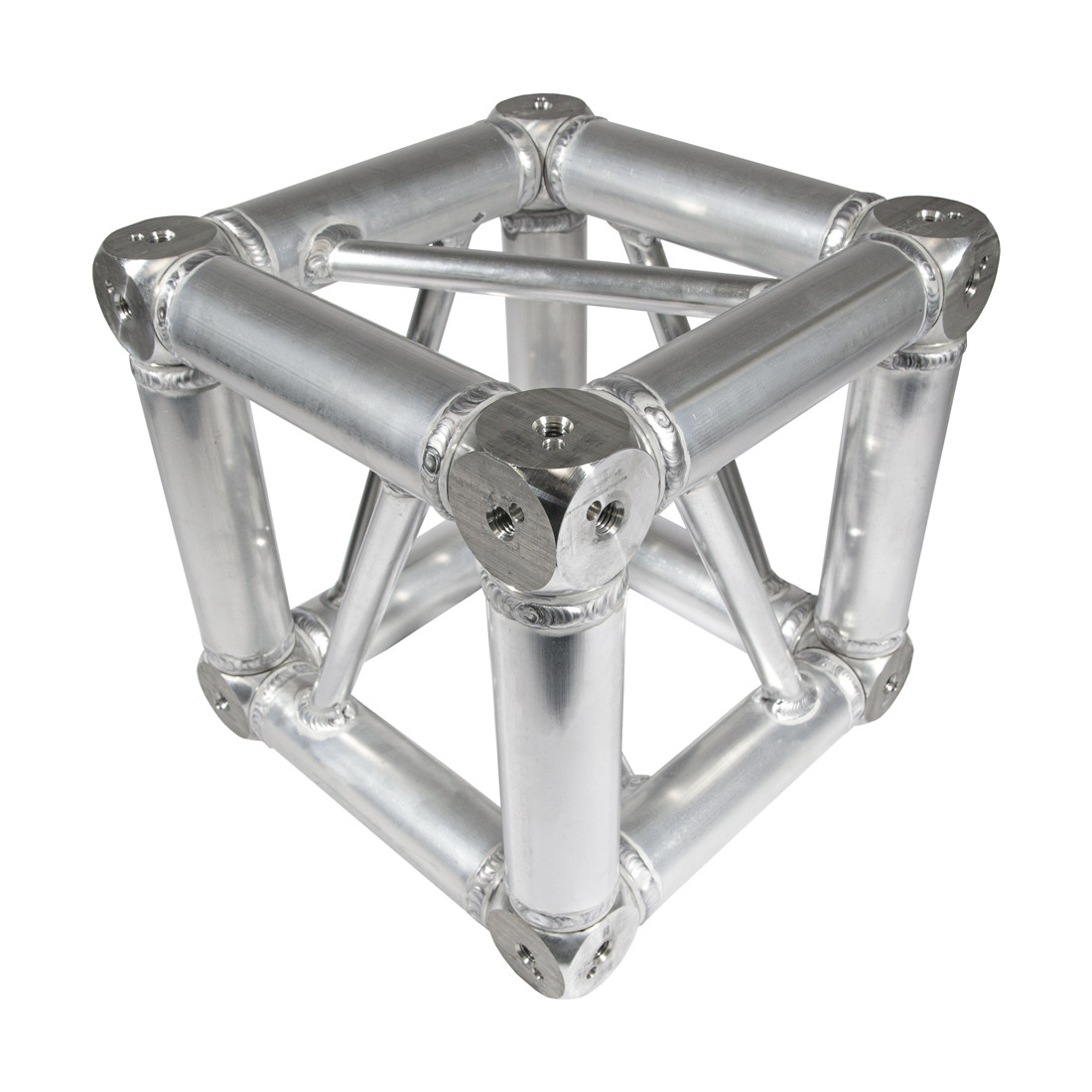

DuraTruss DT 34-Box corner
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
Dimension and weight:
• Length 290 mm (without connector)
• Width: 290 mm
• Height: 290 mm
• Weight: 7.6 kg

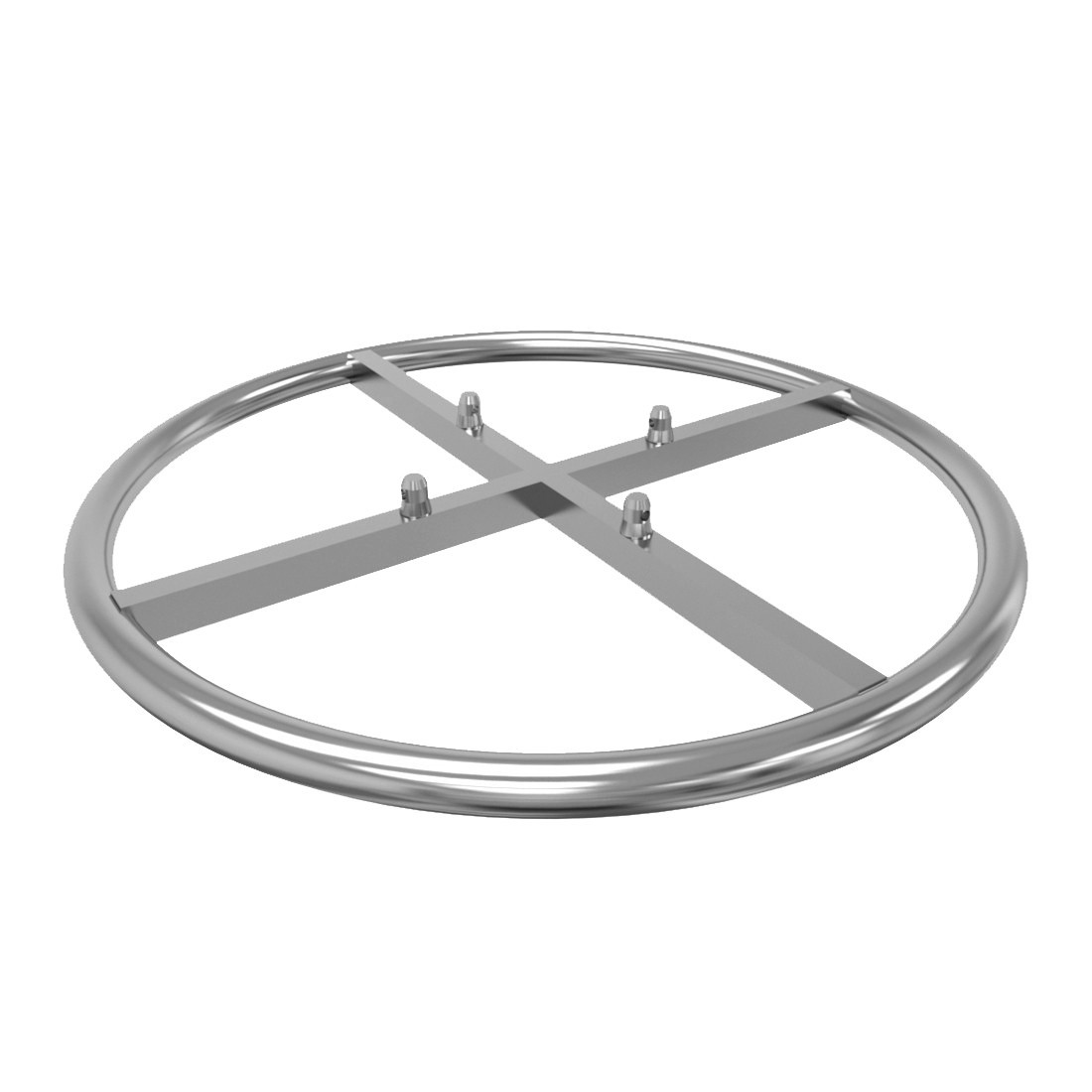

DuraTruss DT 34/2 Dyno Wheel
Specifications:
- Diametrics main pipe: 50mm
- Wall thickness: 2 mm
- Material: Aluminium EN-AW 6082 T6 (AlMgSi1)
Dimension and weight:
- Length: 1000mm
- Width: 1000 mm
- Height: 50 mm (without cone)
- Weight: 6.5 kg

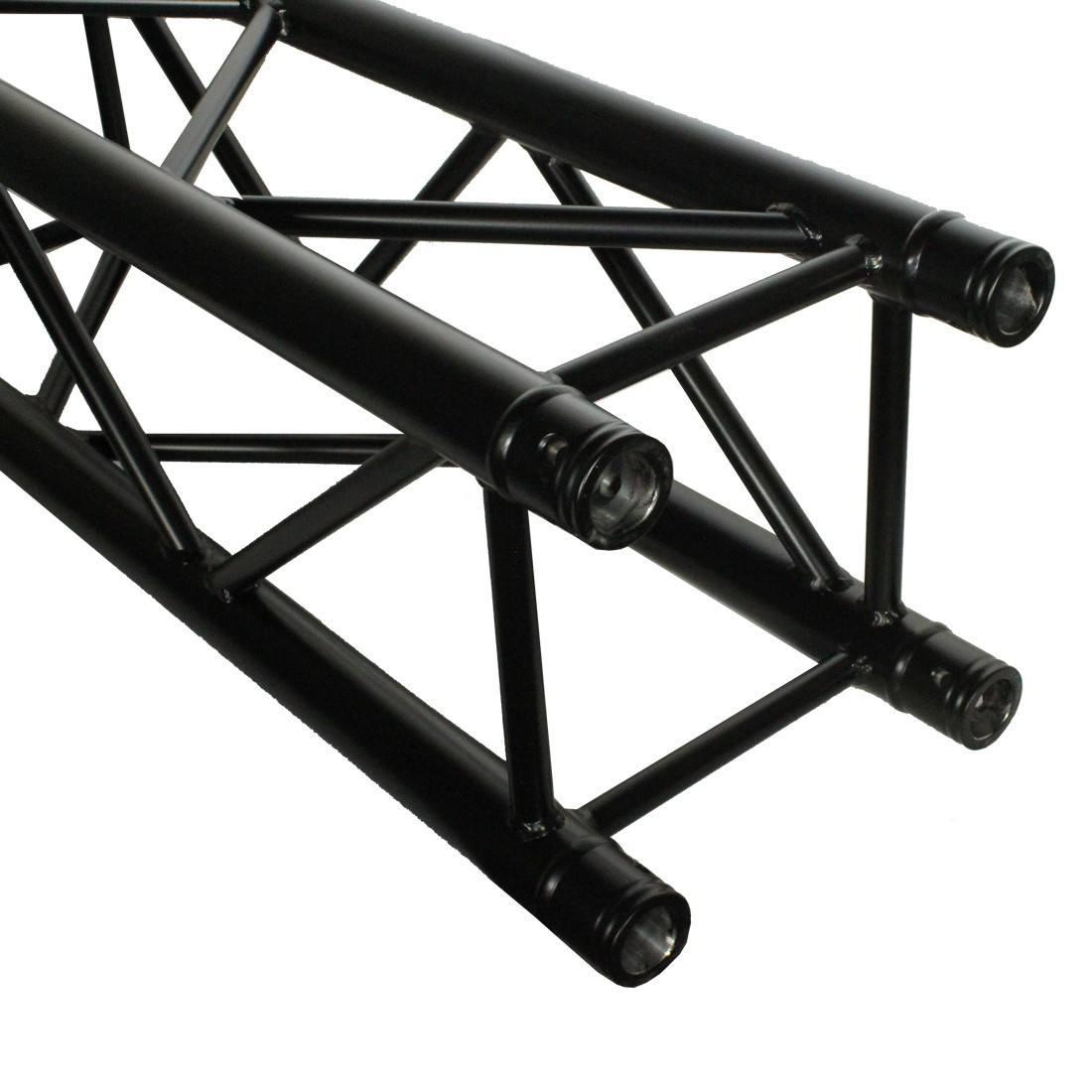

DuraTruss DT34/3-100, black - 4-Point Truss 100cm, black
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
• Colour: RAL9005 matt black
Dimension and weight:
• Length: 1000 mm (without connector)
• Width: 290 mm
• Height: 290 mm
• Weight: 7.4 kg
DuraTruss DT34/3-250, black - 4-Point Truss 250cm, black
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
• Colour: RAL9005 matt black
Dimension and weight:
• Length: 2500 mm (without connector)
• Width: 290 mm
• Height: 290 mm
• Weight: 16.8 kg

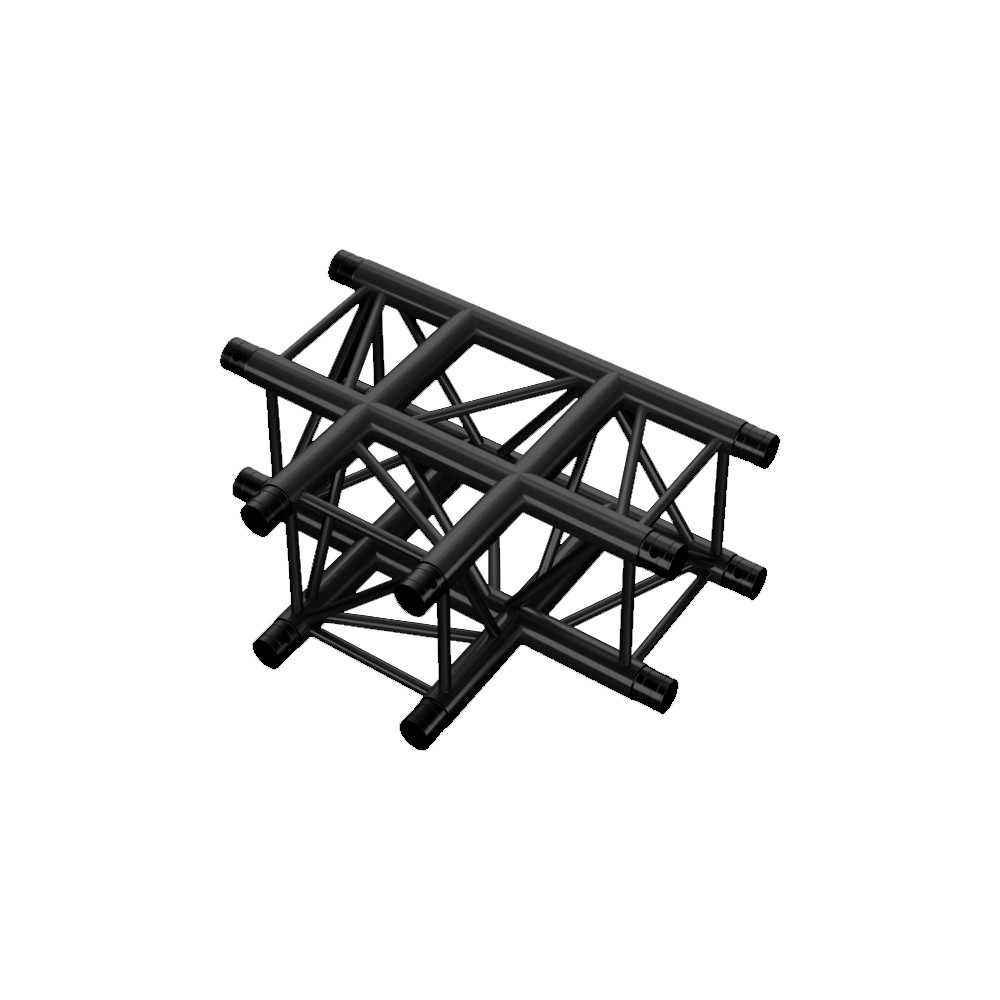

DT 34/3-T35T XL Black - Special 71cm T-branch
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
• Colour: RAL9005 matt black
Dimension and weight:
• Length: 7100 mm (without connector)
• Width: 500 mm
• Height: 290 mm
• Weight: 7.6 kg

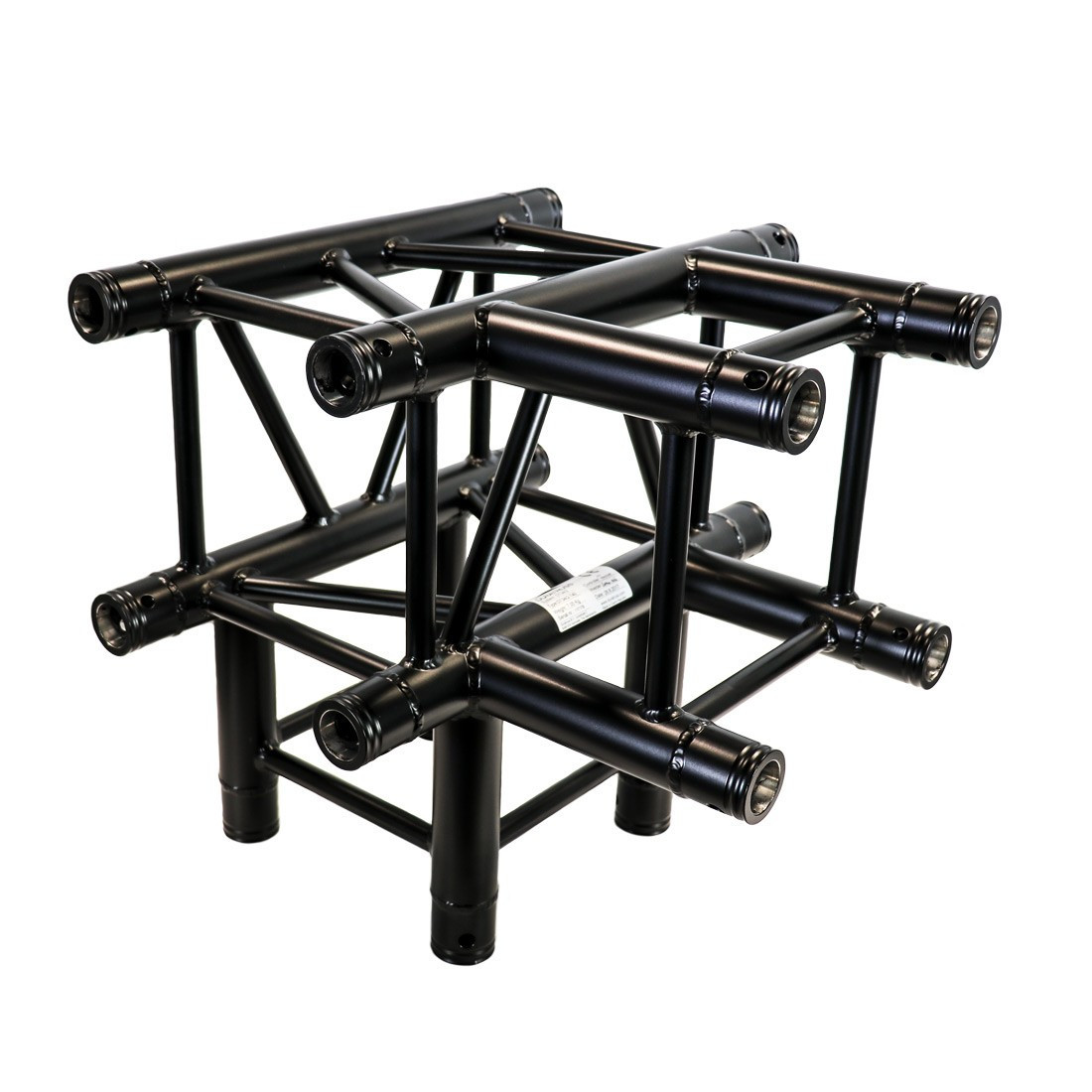

DuraTruss DT 34/3-T40-TD - 4 way t-joint + down, black
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
• Colour: RAL9005 matt black
Dimension and weight:
• Length: 500 mm (without connector)
• Width: 500 mm
• Height: 500 mm
• Weight: 12.4 kg
DuraTruss DT 34/3-T40-TD XL - 4 way t-joint + down, black
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
• Colour: RAL9005 matt black
Dimension and weight:
• Length: 710 mm (without connector)
• Width: 500 mm
• Height: 500 mm
• Weight: 12.4 kg
